    • Machine for processing high viscosity 1K material

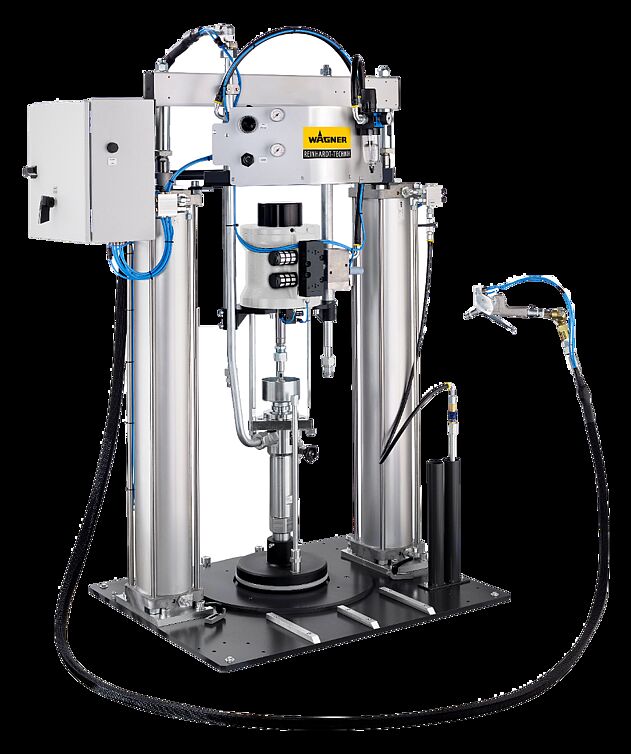

    Visco Star 200 plus

    Machine for processing high viscosity 1K material

    The Visco Star series was developed for the economical processing of high viscosity and one-component polyurethane.

    Overview
    Overview
    Benefits
    Technical data
    Customer references
    Downloads

    Overview

    The Visco Star series was specially developed for the economical processing of fast, one-component assembly adhesives based on polyurethane with accelerators. The focus is particularly on user-friendliness and high performance.

    Despite a high and variable performance, the machine impresses with a remarkably low energy requirement. Optionally, the machine can be integrated into automated production lines. With ever shorter production processes in the vehicle manufacturing sector, fast-curing adhesives are becoming increasingly important.

    Reinhardt-Technik has developed PLUS technology to meet this customer requirement. This technology mixes 1-3% humidity with the base component with the support of an accelerator paste. The result is a significantly shorter cycle time. The accelerator is fed from foil bags, cartridges or 20 L hobbocks, depending on the machine design.



    Standard features

    • Ultra Mix plus (manual gun): highly user-friendly and cost-saving
    • Infinitely adjustable and low-maintenance 6mm valve for optimum accelerator metering
    • Control panel with convenient touch function
    • Two-hand operation for safe barrel changing
    • Error diagnostics in clear text



    Options

    • Conversion kit 20 liter follower plate for processing from small containers
    • Swivel arms 1m and 2.3m for optimal workplace design
    • Mobile version with rollers and push handle for easy in-plant transport
    • Flow Boost valve for up to 50% higher output rate
    • Automatic material discharge valve
    • Material pressure control valve to set constant pressures for consistent material application
    • Central material supply for feeding multiple workstations
    • Electrically heated follower plate, pump and material hoses



    Benefits

    Benefit Checkmark

    Compact and modular design

    Benefit Checkmark

    High efficiency

    Benefit Checkmark

    Constant pressures for uniform material application

    Benefit Checkmark

    Very high output

    Technical data

    Length
    900 mm
    Width
    3.350 mm
    Height
    2.850 mm
    Mixing ratio according to volume
    52:1 to 100:1
    Output
    2,000 cm3/min
    Dyn. operating pressure (max.)
    400 bar
    Weight
    approx. 400 kg
