    • System for processing highly viscous 1K material

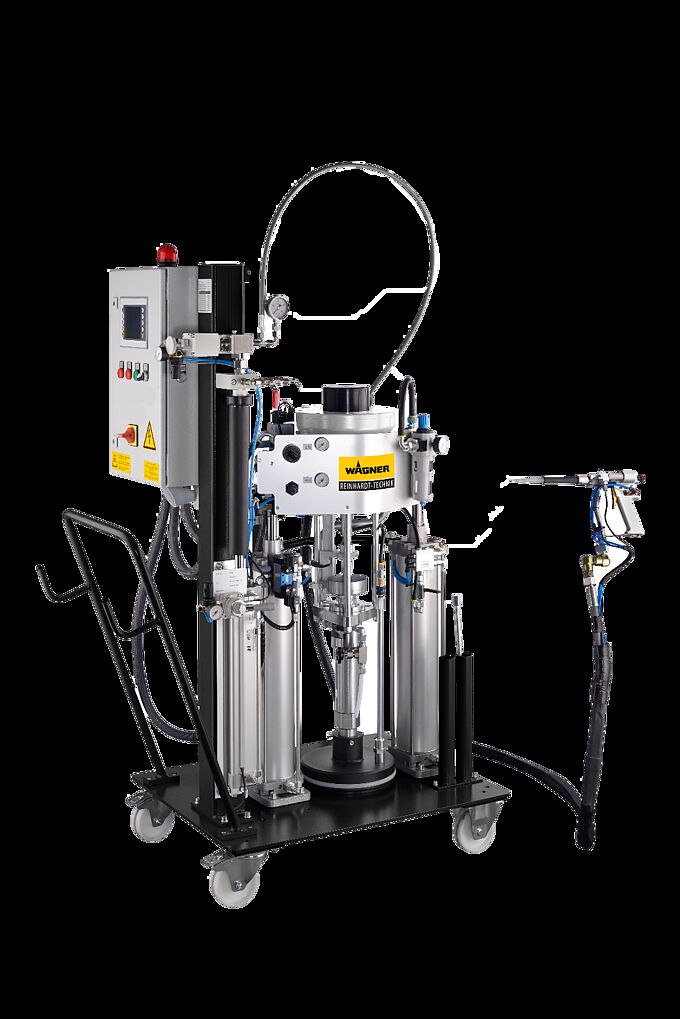

    Visco Star 20 plus

    System for processing highly viscous 1K material

    The Visco Star series was specially developed for the economical processing of high viscosity 1K polyurethane.

    Overview
    Overview
    Benefits
    Technical data
    Customer references
    Downloads

    Overview

    The Visco Star series has been specially developed for the economical processing of fast, one-component assembly adhesives based on polyurethane with accelerators. The focus is particularly on user-friendliness and high performance.

    Despite a high and variable performance, the machine impresses with a remarkably low energy requirement. Optionally, the machine can be integrated into automated production lines. With ever shorter production processes in the transportation sector, fast-curing adhesives are becoming increasingly important.

    Reinhardt-Technik has developed PLUS technology to meet this customer requirement. This technology uses an accelerator paste to mix 1-3% humidity with the base component. The result is a significantly shorter cycle time. The accelerator is fed from foil bags, cartridges or 20 L hobbocks, depending on the machine design.



    Standard features:

    • Ultra Mix plus (manual gun): highly user-friendly and cost-saving
    • Infinitely adjustable and low-maintenance 6 mm valve for optimum accelerator metering
    • Two-hand operation for safe barrel changing
    • Error diagnostics in plain text



    Options

    • Swivel arms 1m and 2.3 m for optimal workplace design
    • Mobile version with rollers and push handle for easy in-plant transport
    • Flow boost valve for up to 50% higher output rate
    • Automatic material discharge valve
    • Material pressure control valve to set constant pressures for consistent material application
    • Central material supply for feeding multiple workstations
    • Electrically heated follower plate, pump and material hoses

    Benefits

    Benefit Checkmark

    Extremely short cycle times

    Benefit Checkmark

    Low energy consumption

    Benefit Checkmark

    Compact and modular design

    Benefit Checkmark

    Convenient control panel

    Benefit Checkmark

    Safe barrel change

    Benefit Checkmark

    Extremely reliable and repeatable precision

    Technical data

    Length
    930 mm
    Width
    700 mm
    Height
    2,100 mm
    Pressure ratio
    52:1 bis 100:1
    Output (max.)
    1,500 cm3/min
    Dyn. operating pressure (max.)
    300 respectively 400 bar
    Weight
    250-300 kg

    Customer references

    Discover practical examples of our solutions in various industries and applications.
    Learn more

    Downloads

    Product brochure Visco Star

    PDF | 1.34 MB
