    • High-performance dosing system for processing large quantities of LSR

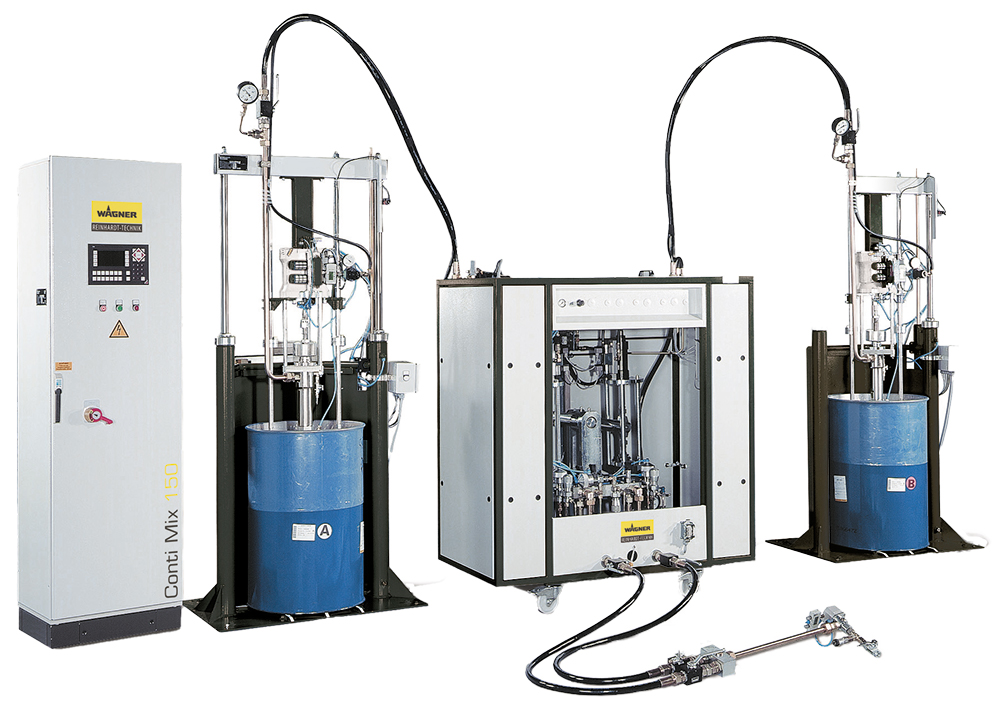

    LSR Conti Mix

    High-performance dosing system for processing large quantities of LSR

    Overview
    Overview
    Benefits
    Technical data
    Customer references
    Downloads

    Overview

    Flexible and powerful 2K dosing and mixing system for LSR

    • For large cavities
    • For continuous application

    Options

    • Dosing of up to two additives
    • Preheating of the individual components

    Benefits

    Benefit Checkmark

    Programmable and variable output

    Benefit Checkmark

    No need to build plants for different volumes

    Benefit Checkmark

    Storage of different recipes

    Technical data

    Length
    1,070 mm (feeding units)
    Width
    720 mm (feeding units)
    Height
    3,500 mm (feeding units)
    Length
    1,560 (dosing unit)
    Width
    800 mm (dosing unit)
    Height
    1,755 mm (dosing unit)
    Mixing ratio
    1:1 to 2.7:1
    Operating voltage
    3x 400 VAC + N + PE
    Max. output
    6 L/min (depending on material viscosity)

    Customer references

    Discover practical examples of our solutions in various industries and applications.
    Learn more

    Downloads

    Product data sheet LSR Conti Mix

    PDF | 948.65 KB
