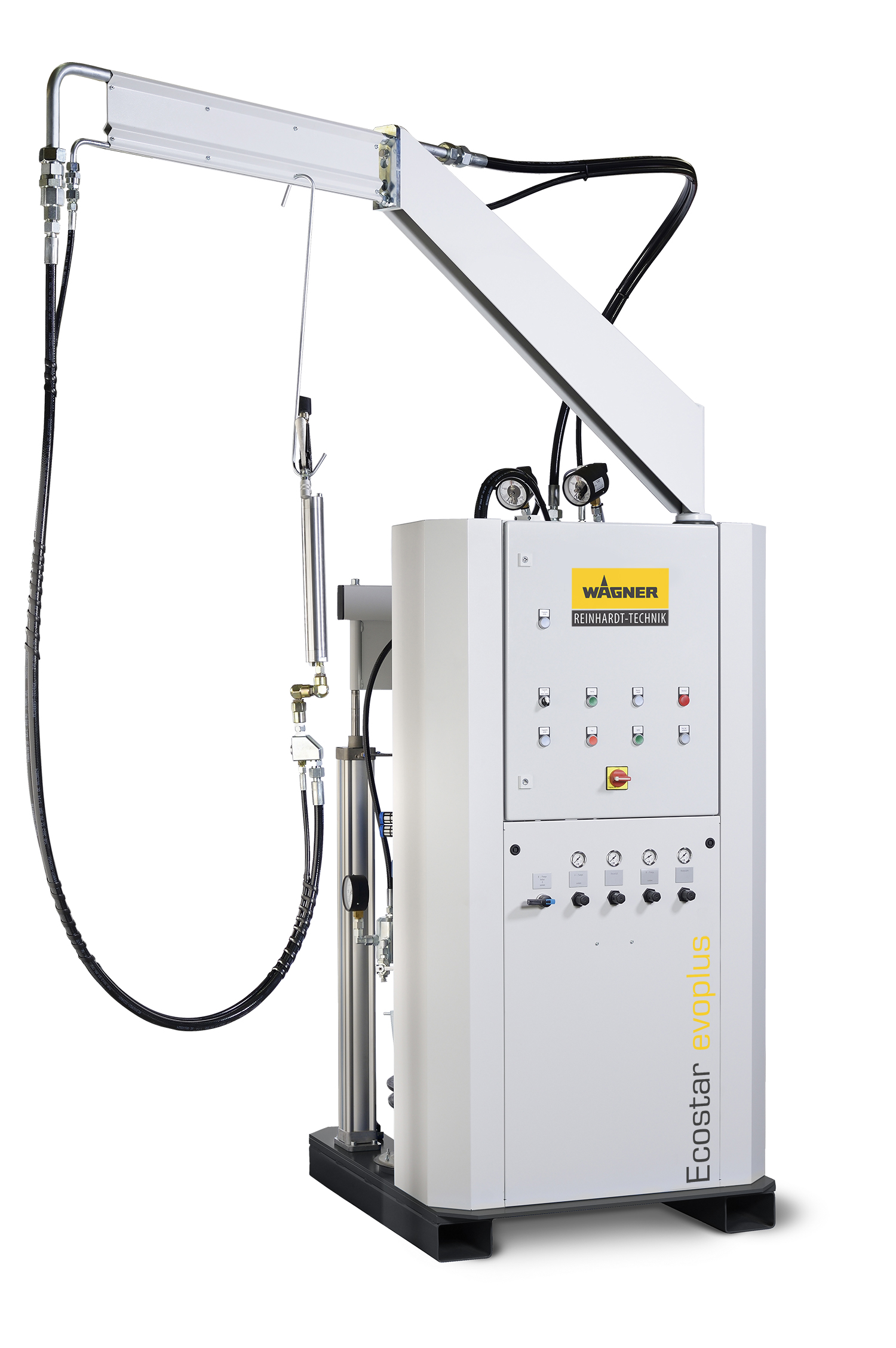

    Ecostar evoplus

    For processing additional accelerator paste in the material.

    Overview
    Overview
    Benefits
    Technical data
    Customer references
    Downloads

    Overview

    Die 2K-Dosier- und Mischanlagen der Ecostar evo Serie wurden für manuelle Anwendungen entwickelt. Die Basis der erfolgreichen Linie sind die zuverlässigen und bewährten Kernkompetenzen. Um den stetig steigenden Anforderungen gerecht zu werden, werden die Ecostar evo-Systeme kontinuierlich weiterentwickelt.
    Ein Highlight des Ecostar evoplus ist der Schwenkarm. Dieser ermöglicht eine hohe Flexibilität im Arbeitsbereich mit der Möglichkeit, Bewegungen in zwei Ebenen auszuführen.
    Die Mischeinheit ist besonders wartungsarm und erfordert nur wenige Reinigungszyklen.
    Die Aufstellfläche der Maschine wurde deutlich reduziert, was sie zu einer der kompaktesten Klebeanlagen auf dem Markt macht.
    Durch die Steigerung der Effizienz dank kompakter und flexibler Arbeitsbereiche, die steigende Beliebtheit bei den Mitarbeitern und den geringen Wartungsbedarf trägt die Ecostar evoair zur Senkung der durchschnittlichen Produktionskosten bei.The 2C metering and mixing systems of the Ecostar evo series were developed for manual applications. The basis of the successful line is the reliable and proven core competencies. In order to meet the constantly increasing requirements, the Ecostar evo systems are continuously developed further.
    A highlight of the Ecostar evoplus is the swivel arm. This enables a high degree of flexibility in the working area with the possibility of carrying out movements in two planes.
    The mixing unit is particularly low-maintenance and requires only a few cleaning cycles.
    The footprint of the machine has been significantly reduced, making it one of the most compact gluing systems on the market.
    By increasing efficiency thanks to compact and flexible work areas, growing popularity among employees, and low maintenance requirements, the Ecostar evoair helps reduce average production costs.

    Benefits

    Benefit Checkmark

    Adjustable mixing ratios

    Benefit Checkmark

    Optimized follower plate design for minimized material residuals

    Benefit Checkmark

    Proven RT pump seals for minimized maintenance requirements

    Benefit Checkmark

    Clad machine design for increased safety and reduced noise levels

    Benefit Checkmark

    Flexible swivel arm, with optional manipulator

    Benefit Checkmark

    Ultra Mix Plus hand gun: cost-saving processing with convenient handling

    Benefit Checkmark

    200l drum garage for easy drum changing

    Benefit Checkmark

    Drum empty warning for A&B component

    Benefit Checkmark

    Pot life and mixer application time adjustable.

    Benefit Checkmark

    Optionally with heatable A-component

    Technical data

    Length
    1,250 mm
    Width
    969 mm
    Height
    1,890 mm
    Mixing ratio according to volume
    6:1 - 14:1
    Output (depending on material)
    1,800 - 1,960 cm3/min; approx. 2,500 g/min (polysulfide)
    Dyn. operating pressure (max.)
    300 bar
    Operating voltage
    3x 400 V + N + PE
    Frequency
    50 Hz
    Power rating
    3.8 kW
    Weight
    approx. 590 kg
