Air motor for reduced exhaust requirements

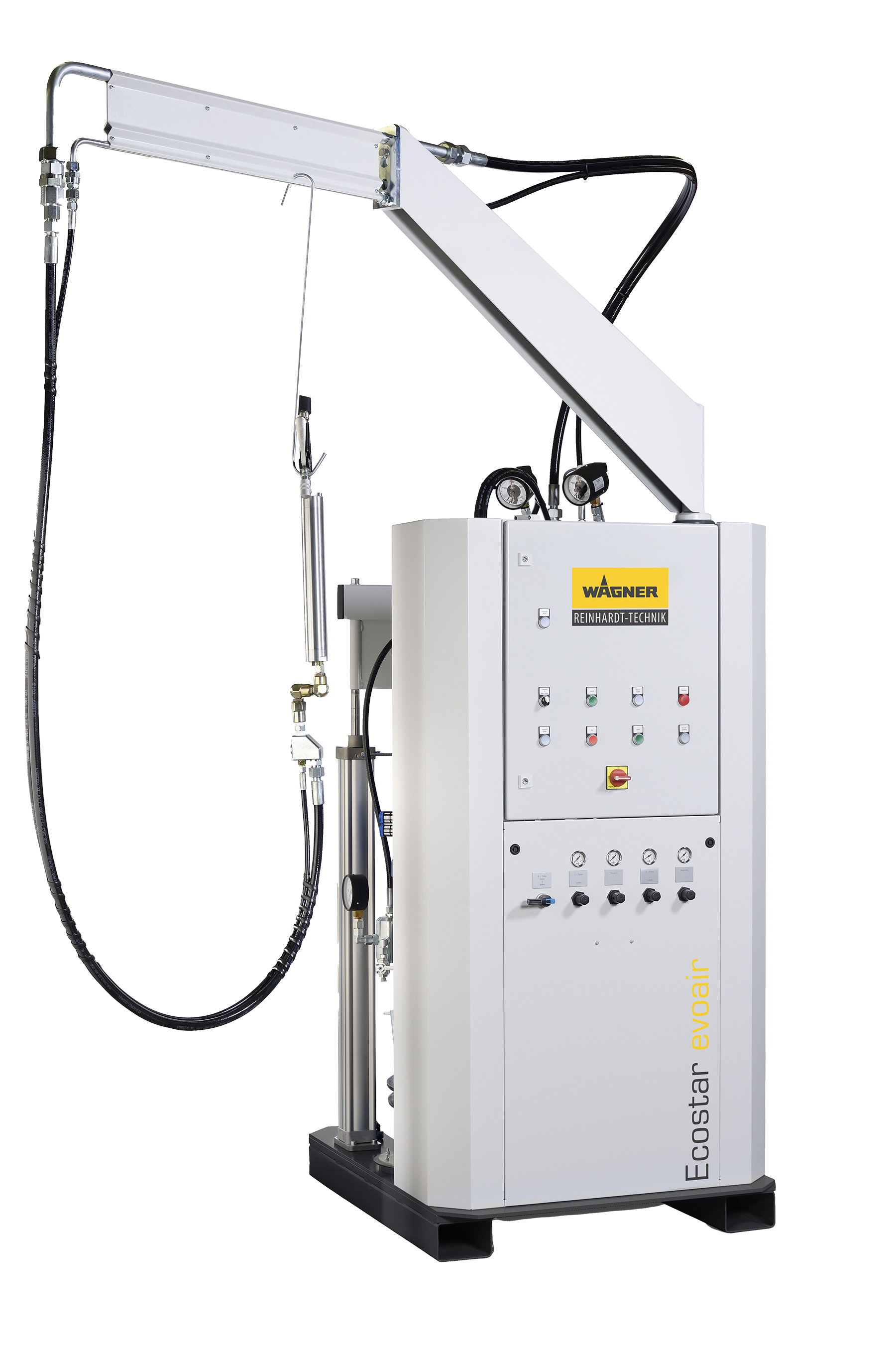

Ecostar evoair

Name: Ecostar evoair
Brand: WAGNER

Air motor for reduced exhaust requirements

Overview

The manual 2K metering and mixing systems of the Ecostar evo series have been developed for manual applications. The basis of the successful line is the reliable and proven core competencies. In order to meet the ever increasing demands, the Ecostar evo systems are continuously being further developed.
One highlight of the Ecostar evoair is the swivel arm. This enables a high degree of flexibility in the working area with the option of carrying out movements in two planes.
The mixing unit is particularly low-maintenance and requires few cleaning cycles.
The machine's footprint has been significantly reduced, making it one of the most compact gluing systems on the market.

Benefits

Adjustable mixing ratio

Optimated follower plate design for minimised

Proven pump seals for minimum maintenance requirements

Attractive machine design

Flexible swivel arm, optionally with manipulator

Alpha Mix for quick and easy cleaning and maintenance

200l drum garage for ergonomic drum changing

Drum empty warning for A and B component

Pot life and mixer operating time adjustable

Technical data

length

1,250 mm

Width

969 mm

Height

1,890 mm

Mixing ratio according to volume

6:1 - 19.5:1

Output (depending on material)

1,440 - 1,560 cm³/min; 2,000 g/min (polysulfide)

Dyn. operating pressure (max.)

300 bar

Operating voltage

3x 400 V + N +PE

Frequency

50 Hz

Power rating (total)

2.5 kW

Weight

approx. 550 kg

Customer references

Discover practical examples of our solutions in various industries and applications.

Learn more

Downloads

PDF | 987.75 KB
