    Overview

    The Conti Flow series offers reproducible dispensing precision and mixing performance. Whether for bonding, sealing, potting or other metering and mixing processes. It is suitable for processing liquid to highly viscous single- or multi-component materials.
    Thanks to the configurable system concept, functions and options, it meets the most individual process requirements.

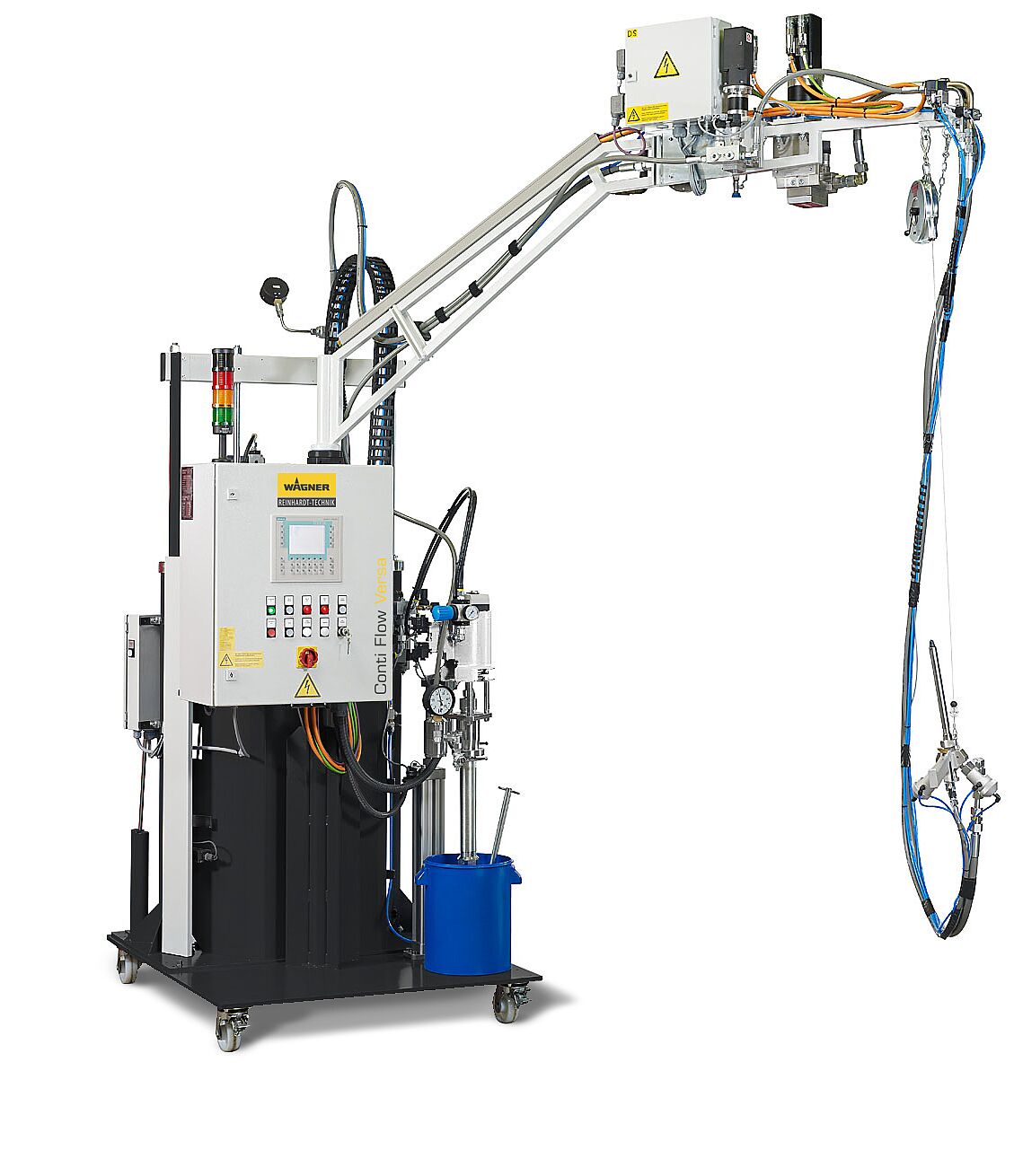

    The Conti Flow Versa is a mobile and compact 2K metering and mixing system for processing liquid to highly viscous two-component materials.
    Its flexibility makes the system your partner in demanding work areas.

    Standard functions:

    • 7" touch display
    • High dispensing accuracy due to short distance from dispensing to application
    • Extremely comfortable operation with flexible swivel arm and balancer support
    • Configurable with different options & functions for your requirements
    • Incl. comfortable Gamma Mix hand gun with ergonomic switch design
    • Inlet and outlet pressure monitoring
    • Different feeds possible
    • Empty drum/vessel warning



    Options:

    • Up to 600 g light and comfortable application gun incl. adjustable angle, as well as a mixing unit mounted on the swivel arm

    • Mixing ratio control by means of measuring cells

    • Available in combination with RT feed units or pressure vessels depending on material as well as consumption

    • Up to 8 heating circuits possible

    • Inline monitoring of the mixing ratio (optional incl. control)

    • MPC (Mold Pressure Control) for RTM/RIM processes in composite manufacturing

    • Up to 64 metering programs

    • Rollable system design

    • Optionally with foot or hand switch

    • Evacuation

    • Snuff-back valve

    • Electric agitator

    Benefits

    Benefit Checkmark

    Configurable system for individual requirements and applications

    Benefit Checkmark

    Reproducible metering and mixing accuracy

    Benefit Checkmark

    High process reliability

    Benefit Checkmark

    Large working radius

    Technical data

    Length
    1.600 mm
    Width
    1.220 mm
    Height
    3.100 mm
    Mixing ratio according to volume
    1:1 to 100:5
    Max. output
    up to 2.000 cm³/min
    Max. material pressure
    100 bar, special version up to 200 bar
    Weight
    ca. 420 kg

    Customer references

    Discover practical examples of our solutions in various industries and applications.
    Learn more

    Downloads

    PDF | 2.02 MB
