Conti Flow Robot

Gear metering systems: One system - Individual applications

Gear metering systems: One system - Individual applications

Overview

The Conti Flow series offers reproducible dispensing precision and mixing performance. Whether for bonding, sealing, potting or other metering and mixing processes. It is suitable for processing liquid to highly viscous single- or multi-component materials.
Thanks to the configurable system concept, functions and options, it meets the most individual process requirements.

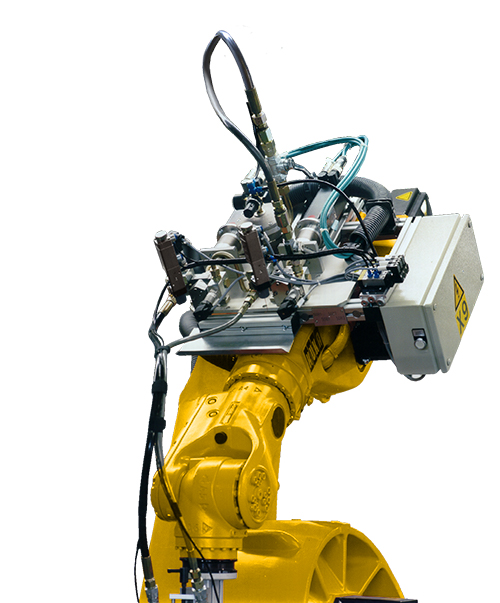

The Conti Flow Robot is the modular as well as flexible concept for an individualized and automated system solution. The metering and mixing components can be integrated into a variety of different plant or system concepts. Whether a standardized application cell or a fully automated turnkey assembly cell - the Conti Flow Robot delivers a perfectly integrated solution for your 1K or 2K dispensing and mixing application.



Standard dunctions:

  • Servo driven precision gear metering pumps
  • PLC control
  • Intuitive control panel
  • Up to 15 dosing programs
  • Inlet and outlet pressure monitoring
  • Intelligent pressure control
  • Alarm in plain text
  • Pot life monitoring



Options:

  • Adaptable with static or dynamic mixing system
  • Snuff-back valve
  • Volume control by means of measuring cells
  • Available in combination with RT-feeding units or pressure vessels depending on material and consumption
  • Number of heating circuits according to the application
  • Inline monitoring of the mixing ratio (optional incl. control)
  • MPC (Mold Pressure Control) for RTM/RIM processes in composite manufacturing
  • Various metering controls possible
  • Up to 64 dispensing programs
  • Evacuation
  • Electric agitator

Benefits

Benefit Checkmark

Modular and flexible concept for an individualized, automated system solution

Benefit Checkmark

Reproducible metering and mixing accuracy

Benefit Checkmark

High process reliability

Technical data

Length
depending on the system design
Width
depending on the system design
Height
depending on the system deisgn
Mixing ratio according to volume
1:1 to 100:5
TheTheoretical output
5,000 cm3/min
Max. operating pressure
100 bar
Weight
depending on the system design
